Measured entry

8bitcn-chart-area-step

chartskeuomorphism

A client-side stepped area chart shipped as a shadcn registry block, with its own chart container and tooltip helpers plus a retro stylesheet. It renders through Recharts and also relies on Lucide, a cn utility backed by clsx and tailwind-merge, Tailwind classes, path aliases, and chart theme tokens.

Specimen

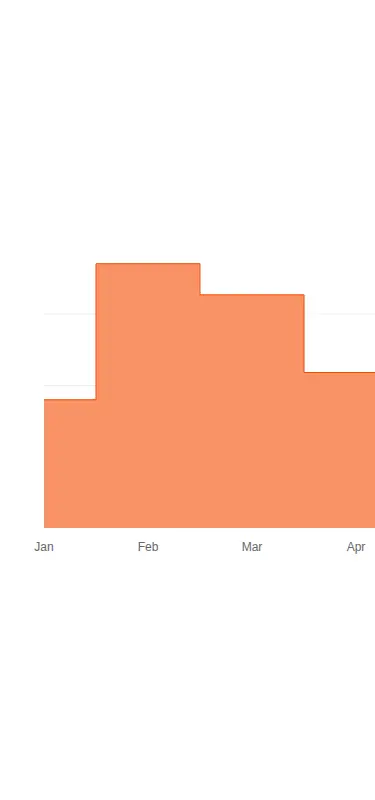

Harness screenshot of 8bitcn-chart-area-step at 375 pixels wide
Harness screenshot at 375 pixels wide. This viewport scrolled sideways.
Harness screenshot of 8bitcn-chart-area-step at 768 pixels wide
Harness screenshot at 768 pixels wide. No horizontal overflow recorded.

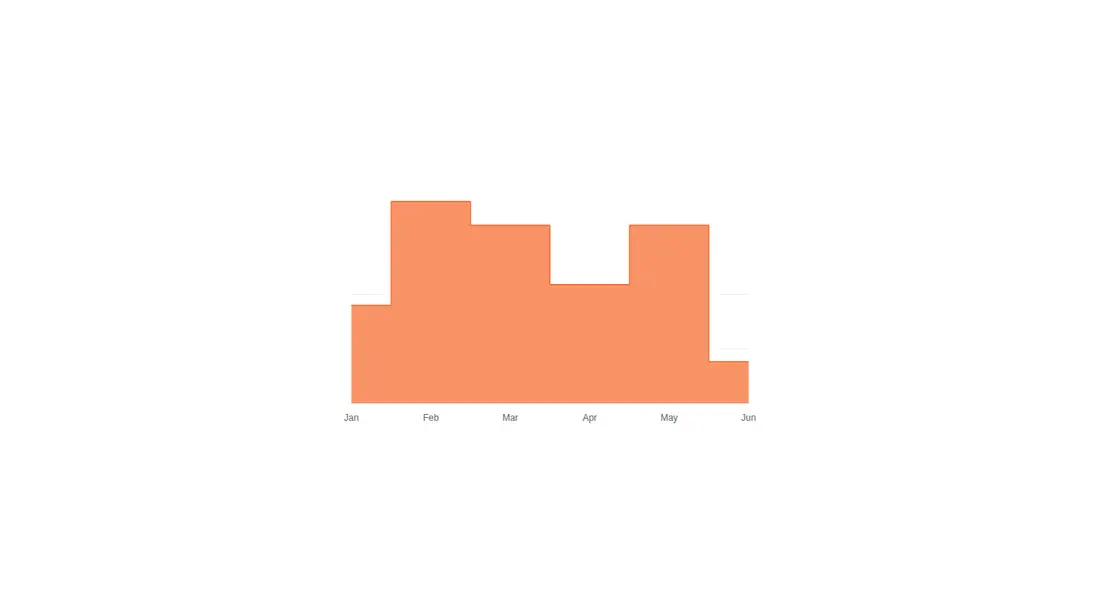

Harness screenshot of 8bitcn-chart-area-step at 1440 pixels wide
Harness screenshot at 1440 pixels wide. No horizontal overflow recorded.

Measured

Every value below was written by the harness on the run that produced the frames above. None of it is derived from the prose.

Harness measurements recorded for 8bitcn-chart-area-step
BuildOK
MountOK
Console errors0
Uncaught page errors0
Horizontal overflowflagged at 375
Axe critical0
Axe serious0
Axe moderate0
Axe minor0
Gzip marginal130.7 KB (196.2 KB build, 65.5 KB baseline)
Bare modeFAIL
Provider requiredNO
Demo usedwritten from the component source API

What the harness recorded

BARE BUILD

✗ Build failed in 1.35s
error during build:
[vite]: Rollup failed to resolve import "recharts" from "<sandbox>re-e2a7c94dc6aa/src/cut/components/ui/8bit/blocks/chart-area-step.tsx".

Verdict

A solid starting point for a stepped trend chart in a Recharts-based interface. It builds and mounts cleanly and has no detected accessibility violations, but it overflows on a narrow viewport and ships static sample data, so mobile sizing and real data integration remain your work.

Use it if

  • You need a compact stepped area chart for monthly or other discrete trend data.
  • Your app already uses Recharts and can reuse the included chart helper layer.
  • You want a chart that mounts without a provider and passed the automated accessibility scan.

Skip it if

  • The chart must fit narrow phone layouts without additional responsive work.
  • You want to avoid adding a comparatively heavy charting dependency for one simple visualization.
  • You need multiple series, legends, live data wiring, or richer interaction out of the box.

Install

Installation record for 8bitcn-chart-area-step
Declared dependenciesrecharts@3.8.0, lucide-react, clsx, tailwind-merge
Missing on installnone
Bare installfails once the shadcn-style helpers are removed, so it needs that setup
Providerno provider required in the harness

In a non-shadcn project, add Recharts, Lucide React, clsx, and tailwind-merge; copy the chart helper and cn utility; configure the import alias or replace it with relative paths; provide the referenced chart color tokens; and ensure Tailwind processes the helper classes. Add the retro stylesheet and its external font import only if you want that typography elsewhere.

Source and credit

This page is a review, not a copy. The component source lives with its author and this site does not republish it. Read the license before you use anything.

Author repository

github.com/TheOrcDev/8bitcn-ui
License
MIT
Record published
2026-08-16
