Measured entry

ruixen-live-waveform

inputunclassifiedmotion on file

A client-side React waveform panel shipped as a shadcn registry component. It draws idle, processing, or microphone-driven bars on a canvas, requests audio through browser media APIs, and includes an optional stop button. It depends on Lucide, a cn utility backed by clsx and tailwind-merge, Tailwind theme classes, and ResizeObserver.

Specimen
Motion capture of the mounted demo, recorded by the harness. No audio track.

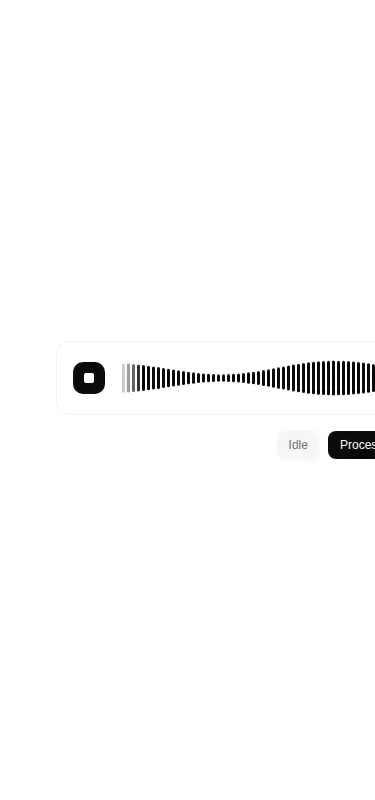

Harness screenshot of ruixen-live-waveform at 375 pixels wide
Harness screenshot at 375 pixels wide. This viewport scrolled sideways.
Harness screenshot of ruixen-live-waveform at 768 pixels wide
Harness screenshot at 768 pixels wide. No horizontal overflow recorded.

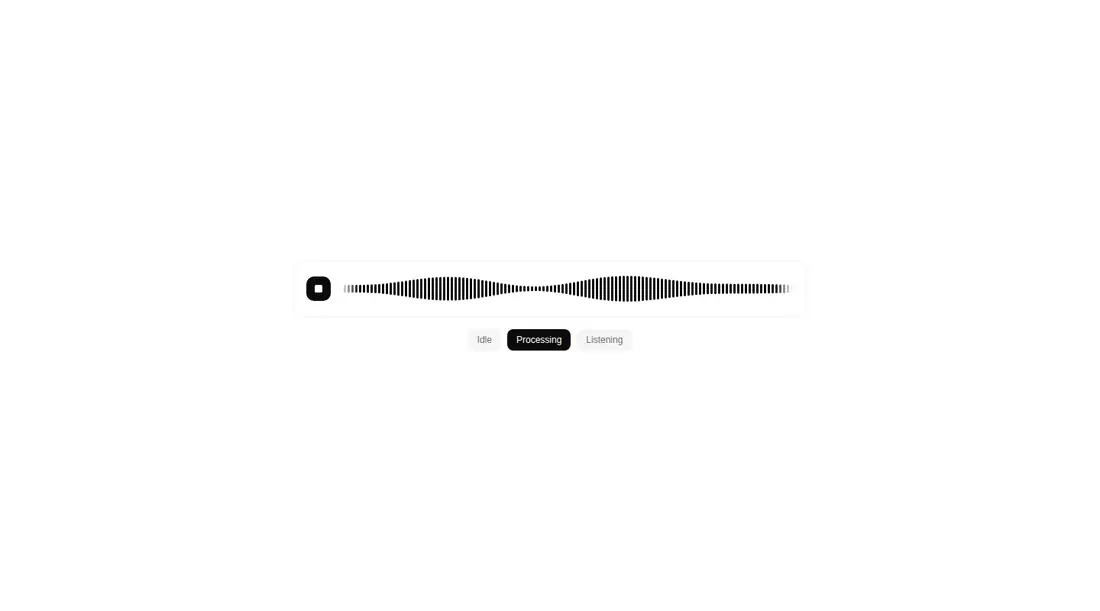

Harness screenshot of ruixen-live-waveform at 1440 pixels wide
Harness screenshot at 1440 pixels wide. No horizontal overflow recorded.

Measured

Every value below was written by the harness on the run that produced the frames above. None of it is derived from the prose.

Harness measurements recorded for ruixen-live-waveform
BuildOK
MountOK
Console errors0
Uncaught page errors0
Horizontal overflowflagged at 375
Axe critical0
Axe serious1
Axe moderate0
Axe minor0
Gzip marginal31.4 KB (96.9 KB build, 65.5 KB baseline)
Bare modeFAIL
Provider requiredNO
Demo usedwritten from the component source API

What the harness recorded

BARE BUILD

✗ Build failed in 43.95s
error during build:
[vite:load-fallback] Could not load <sandbox>/src/lib/utils (imported by src/cut/components/ruixen/live-waveform.tsx): ENOENT: no such file or directory, open '<sandbox>/src/lib/utils'

Verdict

A focused, convincing voice-state visual for shadcn-based apps, with useful tuning props and clean microphone teardown. It needs a shadcn-style setup to build and mount, and teams should fix the narrow-layout overflow and contrast before shipping it.

Use it if

  • You need a compact voice-input status surface with distinct idle, processing, and listening states.
  • Your app already uses shadcn conventions and can grant microphone access in a secure browser context.
  • You want a configurable canvas waveform without adopting a charting or audio visualization library.

Skip it if

  • The component must fit narrow layouts without additional responsive work, since the verified mobile demo overflows.
  • You need accessible colors out of the box, since the tested presentation has a serious contrast issue.
  • Your product cannot request microphone permission or must support environments without browser media and canvas APIs.
  • You need recording, playback, elapsed time, or audio persistence rather than a visual state indicator.

Install

Installation record for ruixen-live-waveform
Declared dependencieslucide-react, clsx, tailwind-merge
Missing on installnone
Bare installfails once the shadcn-style helpers are removed, so it needs that setup
Providerno provider required in the harness

In a non-shadcn project, add Lucide React, clsx, and tailwind-merge; provide a compatible cn helper; map the Tailwind border, card, foreground, and background theme classes; and keep the component client-side where canvas, ResizeObserver, AudioContext, and mediaDevices are available.

Source and credit

This page is a review, not a copy. The component source lives with its author and this site does not republish it. Read the license before you use anything.

Author repository

github.com/ruixenui/ruixen.com
License
MIT
Record published
2026-08-16
