Measured entry

ruixen-spark-chart

inputgradient-glowmotion on file

An interactive React sparkline that draws a smoothed SVG path, gradient fill, hover label, guide, and tracking dot. It ships as a client component from a shadcn registry and relies on React, Tailwind utility and theme classes, plus the project-local cn helper backed by clsx and tailwind-merge.

Specimen
Motion capture of the mounted demo, recorded by the harness. No audio track.

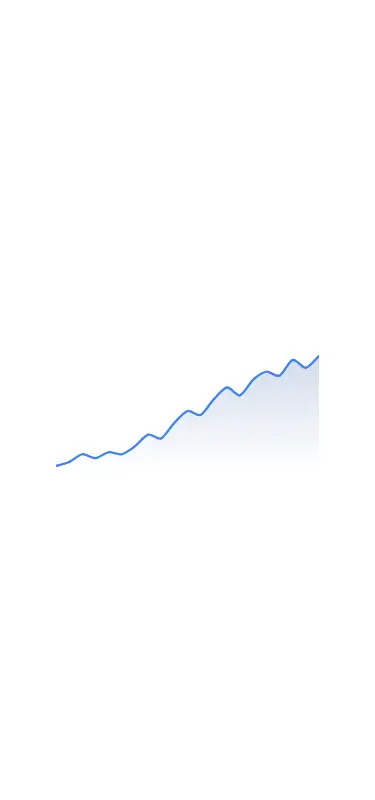

Harness screenshot of ruixen-spark-chart at 375 pixels wide
Harness screenshot at 375 pixels wide. No horizontal overflow recorded.
Harness screenshot of ruixen-spark-chart at 768 pixels wide
Harness screenshot at 768 pixels wide. No horizontal overflow recorded.

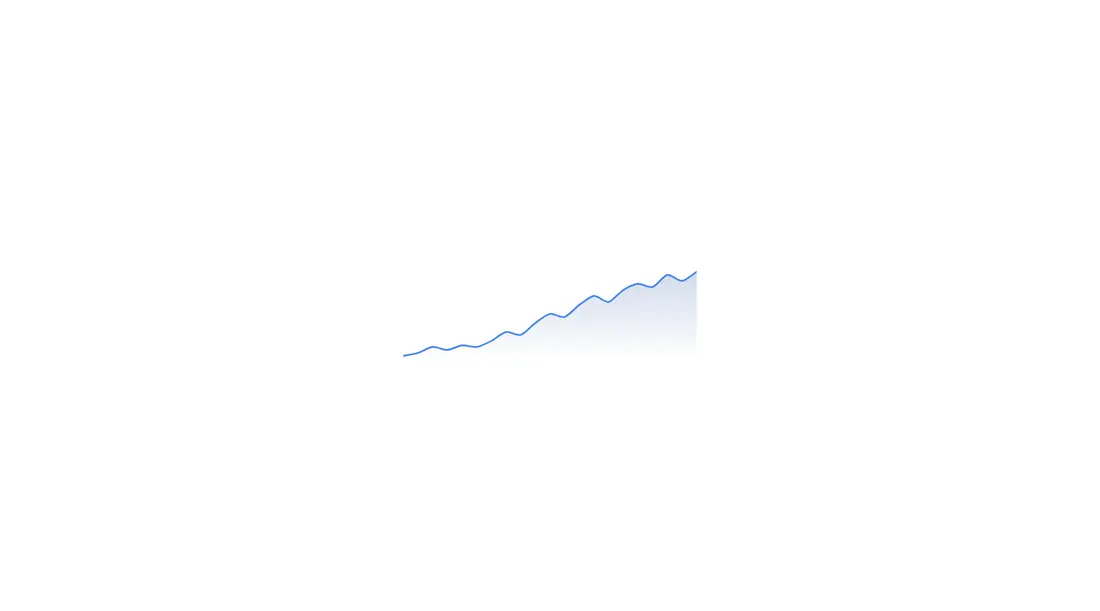

Harness screenshot of ruixen-spark-chart at 1440 pixels wide
Harness screenshot at 1440 pixels wide. No horizontal overflow recorded.

Measured

Every value below was written by the harness on the run that produced the frames above. None of it is derived from the prose.

Harness measurements recorded for ruixen-spark-chart
BuildOK
MountOK
Console errors0
Uncaught page errors0
Horizontal overflowclean at 375, 768, 1440
Axe critical0
Axe serious0
Axe moderate0
Axe minor0
Gzip marginal30.8 KB (96.3 KB build, 65.5 KB baseline)
Bare modeFAIL
Provider requiredNO
Demo usedwritten from the component source API

What the harness recorded

BARE BUILD

✗ Build failed in 1m 23s
error during build:
[vite:load-fallback] Could not load <sandbox>/src/lib/utils (imported by src/cut/components/ruixen/spark-chart.tsx): ENOENT: no such file or directory, open '<sandbox>/src/lib/utils'

Verdict

A focused, polished sparkline for dashboards that need lightweight visual trends and pointer feedback. It builds and mounts in the prepared harness, but it needs a shadcn-style setup because the bare project cannot resolve its local utility import.

Use it if

  • You need a compact single-series trend view with pointer scrubbing.
  • You want callbacks for the interpolated value and active state.
  • Your app already uses Tailwind and shadcn-style aliases and theme tokens.

Skip it if

  • You need axes, legends, multiple series, or charting-library features.
  • Exact values must be discoverable by keyboard or assistive technology without extra work.
  • You need a dependency-free component that can be copied into an unconfigured React project.

Install

Installation record for ruixen-spark-chart
Declared dependenciesclsx, tailwind-merge
Missing on installnone
Bare installfails once the shadcn-style helpers are removed, so it needs that setup
Providerno provider required in the harness

In a non-shadcn project, add Tailwind with the expected theme tokens, configure the source alias, and provide a cn utility using clsx and tailwind-merge. Also define the spark draw keyframes if you want the entrance animation, or replace the project-specific classes and import with local equivalents.

Source and credit

This page is a review, not a copy. The component source lives with its author and this site does not republish it. Read the license before you use anything.

Author repository

github.com/ruixenui/ruixen.com
License
MIT
Record published
2026-08-16
