Measured entry

8bitcn-drawer

sheetskeuomorphismmotion on file

A pixel-styled React drawer delivered as a shadcn registry component plus a retro stylesheet. It wraps the shadcn drawer and Vaul primitives, uses the shared cn utility and class-variance-authority, relies on Tailwind classes, and imports the Press Start font from Google Fonts.

Specimen
Motion capture of the mounted demo, recorded by the harness. No audio track.

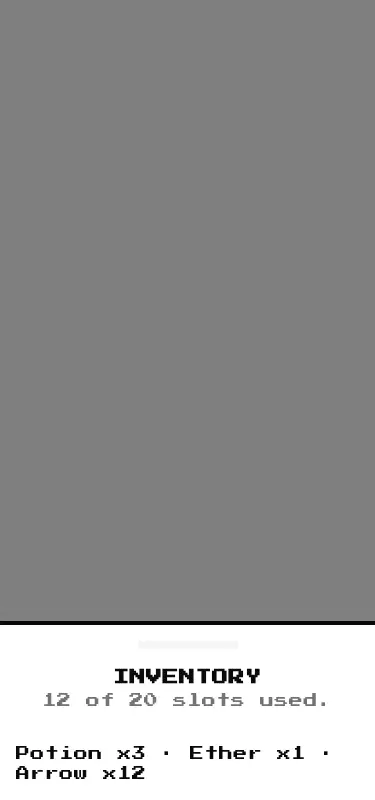

Harness screenshot of 8bitcn-drawer at 375 pixels wide
Harness screenshot at 375 pixels wide. No horizontal overflow recorded.
Harness screenshot of 8bitcn-drawer at 768 pixels wide
Harness screenshot at 768 pixels wide. No horizontal overflow recorded.
Harness screenshot of 8bitcn-drawer at 1440 pixels wide
Harness screenshot at 1440 pixels wide. No horizontal overflow recorded.

Measured

Every value below was written by the harness on the run that produced the frames above. None of it is derived from the prose.

Harness measurements recorded for 8bitcn-drawer
BuildOK
MountOK
Console errors0
Uncaught page errors0
Horizontal overflowclean at 375, 768, 1440
Axe critical0
Axe serious0
Axe moderate0
Axe minor0
Gzip marginal52.3 KB (117.8 KB build, 65.5 KB baseline)
Bare modeFAIL
Provider requiredNO
Demo usedwritten from the component source API

What the harness recorded

BARE BUILD

✗ Build failed in 685ms
error during build:
[vite]: Rollup failed to resolve import "class-variance-authority" from "<sandbox>re-04eec73cb205/src/cut/components/ui/8bit/drawer.tsx".

Verdict

A sound choice for an intentionally retro interface: it builds and mounts cleanly, stays responsive in the tested layouts, and keeps the familiar Vaul behavior. The visual treatment is narrow, and the external font import deserves an explicit privacy and offline-use decision.

Use it if

  • You want a bottom, left, or right drawer that matches a retro game interface.
  • Your app already uses shadcn drawer conventions, Tailwind utilities, and the cn helper.
  • You want Vaul interaction behavior with square borders and a pixel-font treatment.

Skip it if

  • Your product needs neutral styling that blends into a conventional design system.
  • Your content must work without fetching a web font or you do not want to self-host a replacement.
  • You want a standalone drawer with no shadcn base component or Tailwind setup.

Install

Installation record for 8bitcn-drawer
Declared dependenciesvaul, clsx, tailwind-merge
Missing on installnone
Bare installfails once the shadcn-style helpers are removed, so it needs that setup
Providerno provider required in the harness

In a non-shadcn project, add the shadcn drawer base component, Vaul, class-variance-authority, clsx, tailwind-merge, the cn utility and matching import aliases, Tailwind support for the component classes, and the retro stylesheet. Allow the Google Fonts import or replace it with a locally hosted font.

Source and credit

This page is a review, not a copy. The component source lives with its author and this site does not republish it. Read the license before you use anything.

Author repository

github.com/TheOrcDev/8bitcn-ui
License
MIT
Record published
2026-08-16

Alternatives

Other published entries for the sheet pattern, ordered by what they measured: mounts first, then clean axe scans, then bare-mode passes, then the smaller bundle.
