Measured entry

tripled-n8n-workflow-block-shadcnui

transition-effectminimal-flatmotion on file

A client-side workflow canvas shipped as a shadcn registry block. It renders draggable preset nodes, curved connections, an add-node control, and in-memory status counts. It uses React and Framer Motion plus shadcn Badge, Button, and Card primitives, Lucide icons, Tailwind theme tokens, and the usual utility helper.

Specimen
Motion capture of the mounted demo, recorded by the harness. No audio track.

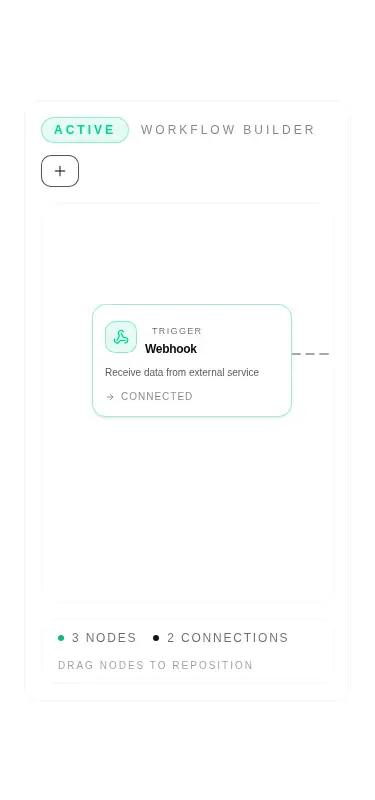

Harness screenshot of tripled-n8n-workflow-block-shadcnui at 375 pixels wide
Harness screenshot at 375 pixels wide. No horizontal overflow recorded.
Harness screenshot of tripled-n8n-workflow-block-shadcnui at 768 pixels wide
Harness screenshot at 768 pixels wide. No horizontal overflow recorded.

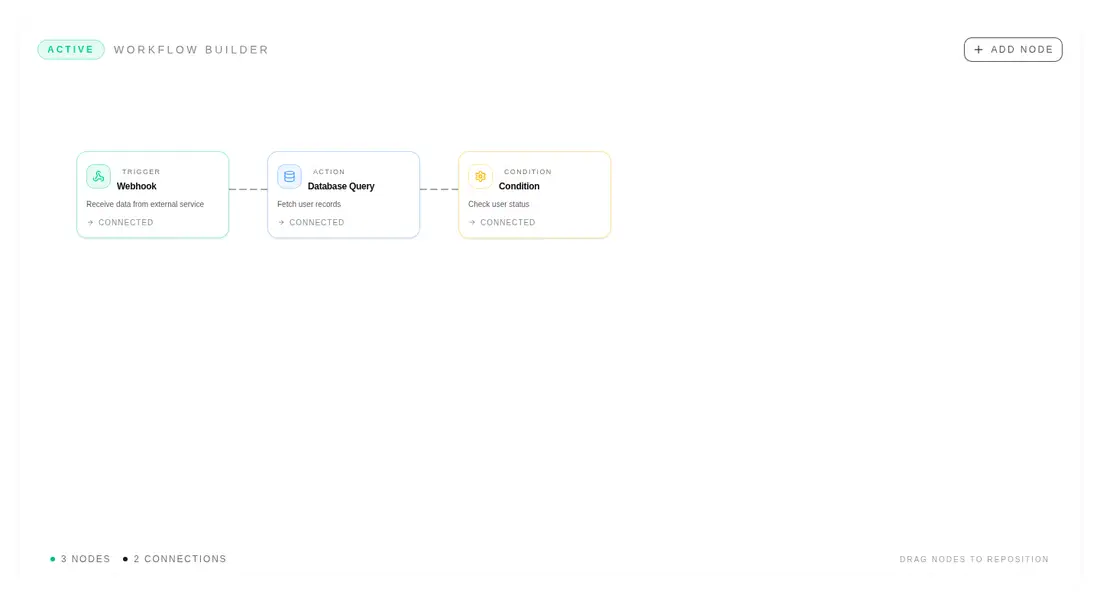

Harness screenshot of tripled-n8n-workflow-block-shadcnui at 1440 pixels wide
Harness screenshot at 1440 pixels wide. No horizontal overflow recorded.

Measured

Every value below was written by the harness on the run that produced the frames above. None of it is derived from the prose.

Harness measurements recorded for tripled-n8n-workflow-block-shadcnui
BuildOK
MountOK
Console errors0
Uncaught page errors0
Horizontal overflowclean at 375, 768, 1440
Axe critical0
Axe serious1
Axe moderate0
Axe minor0
Gzip marginal73.7 KB (139.1 KB build, 65.4 KB baseline)
Bare modeFAIL
Provider requiredNO
Demo usedwritten from the component source API

What the harness recorded

BARE BUILD

✗ Build failed in 1m 10s
error during build:
[vite:load-fallback] Could not load <sandbox>/src/lib/utils (imported by src/components/ui/badge.tsx): ENOENT: no such file or directory, open '<sandbox>/src/lib/utils'

Verdict

A credible prototype canvas with clean responsive containment and working pointer interactions, but it is presentation logic rather than workflow infrastructure. It needs a shadcn-style setup, and the contrast issue plus missing keyboard editing should be addressed before production use.

Use it if

  • You need an interactive workflow mockup for a product page or prototype.
  • Your app already has shadcn primitives, Tailwind theme tokens, and path aliases in place.
  • Horizontal canvas scrolling on narrow screens fits your interaction model.

Skip it if

  • You need a real n8n editor, execution monitoring, persistence, or backend integration.
  • Keyboard users must be able to create, connect, and reposition nodes without pointer dragging.
  • You cannot revise the low-contrast secondary labels and status text.
  • You want a lightweight static workflow diagram without an animation dependency.

Install

Installation record for tripled-n8n-workflow-block-shadcnui
Declared dependenciesframer-motion, react, radix-ui
Missing on installnone
Bare installfails once the shadcn-style helpers are removed, so it needs that setup
Providerno provider required in the harness

In a non-shadcn project, add React, Framer Motion, Lucide React, Tailwind styling and theme tokens, the shadcn Badge, Button, and Card primitives, the class-name utility helper, and an alias that resolves the component and utility import paths.

Source and credit

This page is a review, not a copy. The component source lives with its author and this site does not republish it. Read the license before you use anything.

Author repository

github.com/moumen-soliman/uitripled
License
MIT
Record published
2026-08-14
